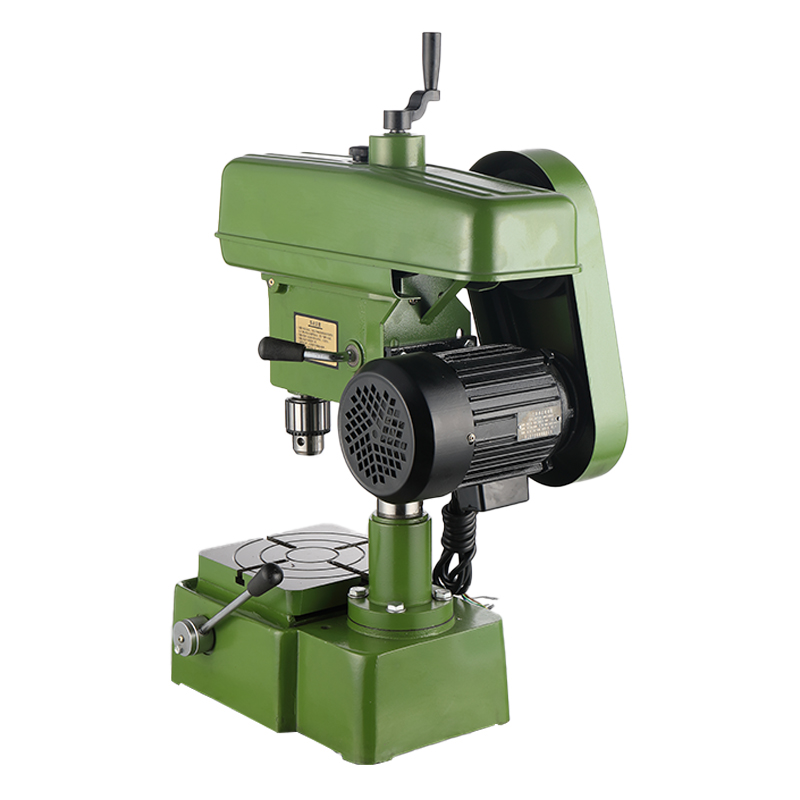

11-inch industrieel koppelingstype tikkende machine M12
  • 11-inch industrieel koppelingstype tikkende machine M12 11-inch industrieel koppelingstype tikkende machine M12
  • 11-inch industrieel koppelingstype tikkende machine M12 11-inch industrieel koppelingstype tikkende machine M12
  • 11-inch industrieel koppelingstype tikkende machine M12 11-inch industrieel koppelingstype tikkende machine M12

11-inch industrieel koppelingstype tikkende machine M12

Dit artikel richt zich op de belangrijkste kenmerken van 11-inch industrieel koppelingstype Tapping Machine M12.
Model:SWJ-10B

Stuur onderzoek

Productomschrijving
Productspecificaties
Producttype Tapmachine
Maximale tikdiameter (medium koolstofstaal/gietstukken) (mm) M12 / M10
Kolomdiameter (mm) 50
Maximale spindel (mm) 50
Afstandsspilas tot kolomoppervlak (mm) 140
Max afstandsspindel neus naar WorkTable (mm) 265
Max afstand spindel neus tot basis (mm) /
Spindel taps toelopen B16
Spindelsnelheden bereik (r/min) 250、480、800
Spindelsnelheden serie 3
Dimensie van WorkTable Surface (mm) 230x200
Dimensie van basis (mm) 365x254
Workbench -slot/basissleuf (mm) /
Totale hoogte (mm) 767
Motor (W) 550
GW/NW (kg) 70/60
Verpakkingsafmetingen (cm) 58x37x70

11 -inch industrieel koppelingstype Tap Machine M12 - Productdetails en technische parameters

I. Simett Industrial Grade Benchop Tapping Machine Core Parameters

 Type apparatuur: tikkende machine voor bankop (precisie)

 Maximale tapcapaciteit: Gemiddeld koolstofstaal: M12 Gietijzer: M10

 Kolomdiameter: 50 mm (versterkte structuur)

 Spindelslag: 50 mm (precisie verticale voeding)

 II. Verwerkingsruimte Afstand van spindelcentrum tot kolom: 140 mm (geoptimaliseerde werkruimte)

 Spindel uiteinde tot werktafel maximale afstand van het spiluiteinde tot het werktabiel: 265 mm (verstelbaar ontwerp)

 Grootte van het werktabiel: 230 × 200 mm (gietijzeren platform)

 Grootte van de basis: 365 × 254 mm (solide ondersteuning)

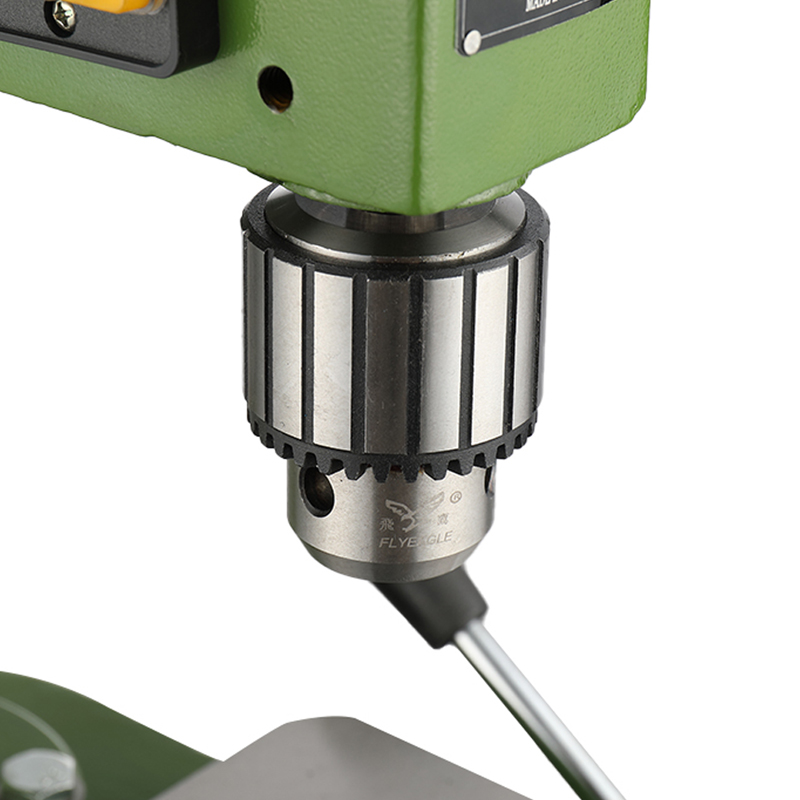

 Ten derde, het spilsysteem Spindel taper: b16 precisie taps toelopen

 Snelheidsbereik: drie snelheid (250/480/800 tpm) 250 tpm: geschikt voor tikken met grote diameter 480rpm: universele bewerkingssnelheid 800 tpm: hoge efficiënte verwerking van kleine gaten

 Aandrijfmotor: 550 W High Torque Motor (continu werk zonder warmte)

 IV. Apparatuurspecificaties Totale machinehoogte: 767 mm (ergonomie)

 Netto/bruto gewicht: 60 kg/70 kg

Verpakkingsgrootte: 58 × 37 × 70 cm (standaard) (Verpakking exporteren)

 V. Productvoordelen Precisie tikken: B16 spindel taper zorgt voor de schroefdraad

 Verwerkingsprecisie Triple variabele snelheid: geoptimaliseerde snelheidselectie voor verschillende materialen Rigide structuur: 50 mm dikkere kolom onderdrukt effectief trillingen

 Compact compact ontwerp: kleine voetafdruk, geschikt voor flexibele workshoplay -out.
